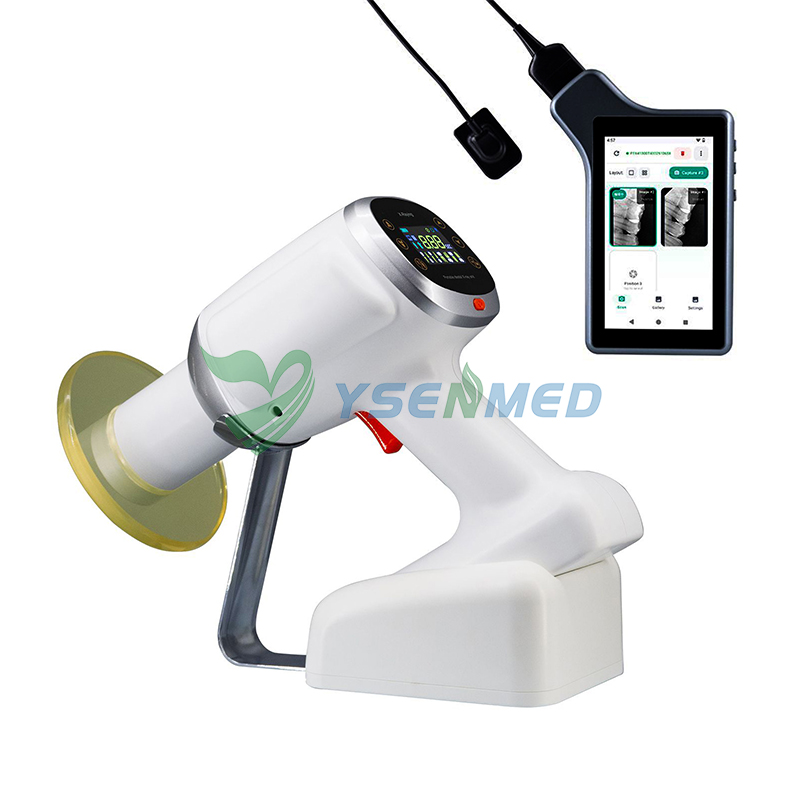

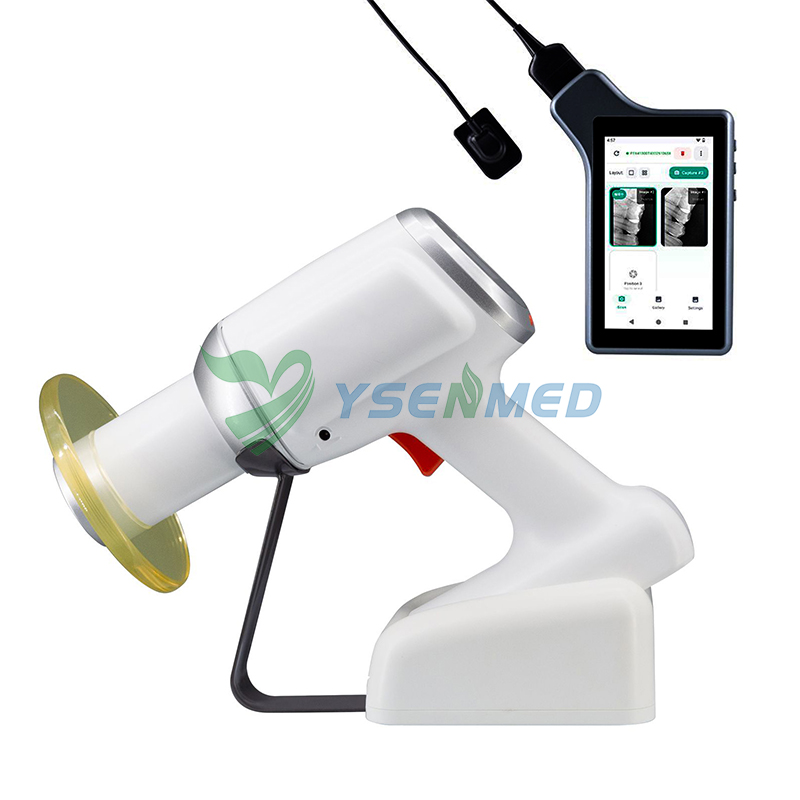

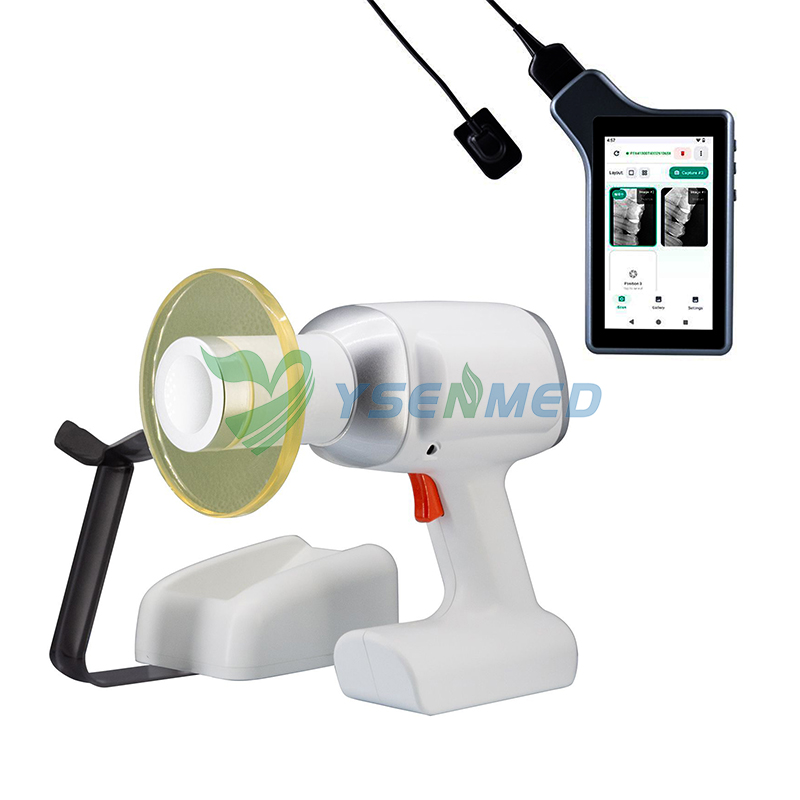

Portable Digital Dental X-ray System YSDEN-R500 + YSDEN-DR550
Item No.: YSDEN-R500 + YSDEN-DR550
| Product parameters | |
| Brand: | YSENMED |
| MOQ: | 1 |
| Package: | Wooden Package |
| Ship From: | Guangzhou |
| Lead Time: | 3-15 days |
| Customization: | Support Customization |
Description
YSDEN-R500 Dental X-ray YSDEN-DR550 Intraoral Sensor 5” Display System
X-ray Features
* The motherboard uses semiconductor components of international famous brands such as Samsung of Korea, Rubycon of Japan, KIA and HTC, with more stable performance.
* Small shape, light weight, easy to carry and can take pictures with one hand.
* Microcomputer IC program, high control precision, simple operation, one-key setting before taking pictures.
* High power battery, constant discharge, could make continuous shooting 200 times when fully charged.
* Multiple imaging methods of film, sensor and scanner can be selected arbitrarily.
* Micro-focus tube, the focal size is 0.4mm, the radiation is concentrated, the scattering ray is less, and the image is more clear.
* Compared with ordinary X-ray machines, the DC high-frequency portable X-ray machine is free from the unstable interference of external AC power, the output ray is stable when shooting, and the image is much better.
X-ray Specifications
Tube voltage: 60KV
Tube current: 2.0 Ma
Exposure time: 0.1-2.0 s
Frequency: 30KHz
Rate power: 120VA
Distance from the skin to cone: 150mm
Tube focus: 0.4mm
Battery: DC1550mAh
Charger input voltage: AC100V-240V
Output voltage: DC14.8-16.8V
Gross weight: 4.0kg
Package size: 422mm×195mm×370mm
Sensor Features
* APS CMOS sensor technology
* Smart connection technology
* Suitable for all kinds of X ray machines
* Direct evaporation scintillator technology
* Ultra high sensitivity USB 2.0 interface direct connection
* Thin design, smooth angle, thumb position, humanized design
* Protection level IP68
Sensor Specifications
| TYPE | YSDEN-DR530 | YSDEN-DR550 |
| Mechanical Dimension（mm³） |
25.0×38.5×4.5 | 31.0×40.0×4.5 |
| Effective imaging area (mm²) |
20×30 | 26×36 |
| Pixel Matrix | （1.5M）1000×1500 | （2.34M）1300×1800 |
| Option color | ||
| Sensor type | APS CMOS | |
| Scintillator type | DIRECT-GROWTH CESIUM IODIDE | |
| Cord length（m） | Standard 3m, Optional 5m | |
| Pixel size（μm） | 20 | |
| Spatial resolution （Ip/mm） |
In theory：25 Ip/mm Actual：14-16 Ip/mm（High sensitivity） 18-20 Ip/mm( high resolution) |
|
| Gray scale | 16bits，65535 | |
| Exposure mode | SMART AED mode | |
| Protective grade | IP68 for Soak disinfection | |
| Accessory function | Support the Twain Protocol | |
| Operating System | Windows 7 and above，32/64bit | |
Display System
Screen Size: 5”
Resolution: 720*1280
Memory: 3GB
Storage: 32GB (support TF card storage extent, max. 256GB)
Input: 5V1A
